Hydraulic Hose Crimper Machines And Equipment: The Core of Industrial Connection Technology

In modern industrial sectors, hydraulic systems serve as the "blood vessels" of power transmission, with their stability and reliability directly impacting equipment operational efficiency. Hydraulic hose crimper machines and supporting equipment are critical components ensuring secure connections in hydraulic systems. This article delves into the functions, technical features, and industry applications of these machines, highlighting their significance in industrial settings.

1. Hydraulic Hose Crimping Machines: The Core of Precise Connections

A hydraulic hose crimper is a specialized device that uses mechanical or hydraulic power to tightly crimp hoses and fittings, forming a sealed connection. Its core function is to ensure hydraulic hoses do not leak or detach under high pressure, guaranteeing the stable operation of hydraulic systems.

1.1 Working Principle

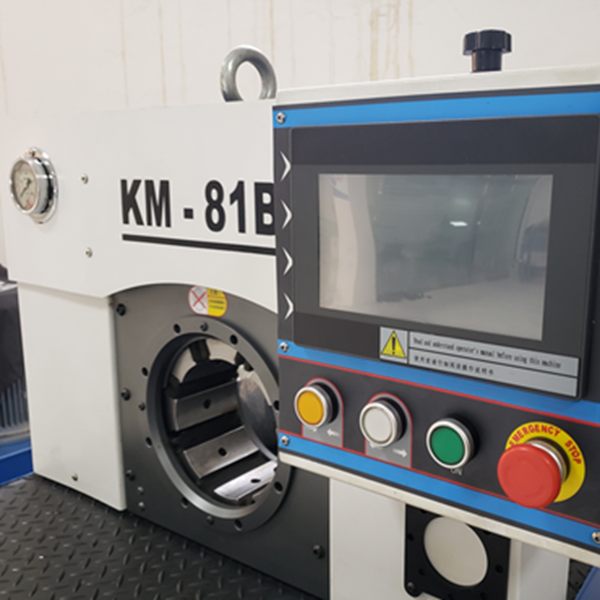

Crimper machines apply uniform pressure to the outer rubber layer of the hose via dies, forcing the inner rubber layer to tightly adhere to the metal components of the fitting, creating an interference fit. High-end models often feature CNC systems that precisely control crimping force, stroke, and dimensions, ensuring consistency in every crimp.

1.2 Technical Classifications

· Manual Crimpers: Suitable for small-batch, mobile operations (e.g., repair scenarios). Easy to use but low in efficiency.

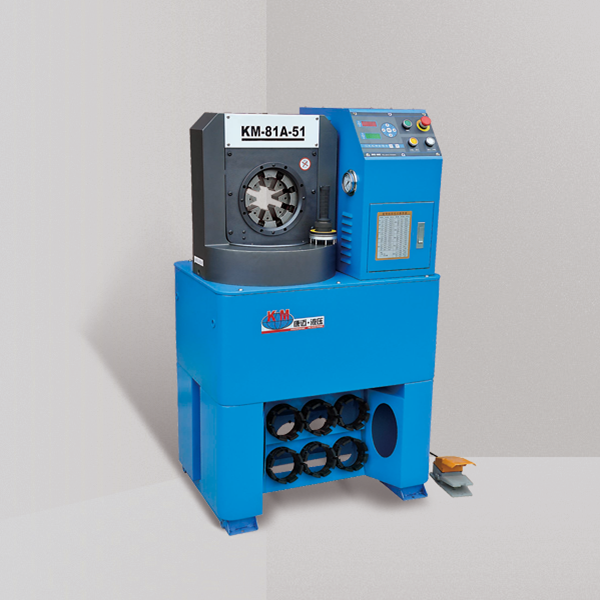

· Electric/Hydraulic Crimpers: Powered by electricity or hydraulics, offering high force and efficiency, ideal for industrial mass production.

· Pneumatic crimping machine: It relies on compressed air as the power source. By controlling the compressed air entering the cylinder, it pushes the piston to move, and then drives the crimping die to squeeze and crimp the pipe fittings and joints. Compared with the manual crimping machine, it has higher working efficiency. Compared with the electric or hydraulic crimping machine, its structure is relatively simple, and the cost is lower. Moreover, it is suitable for occasions with certain requirements for fire prevention and explosion protection. However, the pressure it can provide may be relatively limited, and it is generally suitable for crimping operation scenarios with medium pressure requirements.

1.3 Key Performance Indicators

· Crimping Force Range: 10–500 tons, compatible with hoses of various sizes (e.g., 6mm–50mm diameters).

· Crimping Accuracy: Error control within ±0.1mm to ensure sealing performance.

· Die Compatibility: Supports multiple fitting types (e.g., JIC, ISO, SAE) and hose brands (e.g., Gates, Manuli).

2. Supporting Equipment: Building Comprehensive Crimping Solutions

The reliability of hydraulic hose crimping depends not only on the crimper itself but also on auxiliary equipment. Here are common supporting tools:

2.1 Hose Cutting Machines

· Function: Precisely cut hoses to ensure flat ends and prevent rubber layer peeling or metal damage.

· Types: Manual roller, electric disc, and pneumatic burr-free cutters, suitable for different hose materials (rubber, PTFE, etc.).

2.2 Hose skiving Machines

· Function: Remove the outer rubber layer from hose ends to expose the metal braiding, facilitating fitting insertion and crimping.

· Advantage: Automated stripping controls the stripping length (error ±1mm), avoiding braiding damage from manual operations.

2.3 Pressure Testing Equipment

· Function: Conduct hydrostatic or burst tests on crimped hose assemblies to detect leaks and pressure resistance.

· Standards: Compliant with international norms like ISO 1402-1 and SAE J1401 to ensure industrial safety.

2.4 Intelligent Management Systems

· Function: Integrate crimping data logging, equipment status monitoring, and production analysis for digitalized workflows.

· Application: Bind hose assembly IDs via barcode scanners to trace crimping parameters, test results, and service cycles.

3. Industry Applications: Full-Scenario Coverage from Manufacturing to Maintenance

Hydraulic hose crimpers and equipment are widely used in the following sectors:

3.1 Construction Machinery

· Scenario: Production of hydraulic hose assemblies for excavators, cranes, and loaders, designed to withstand 20–30MPa pressure.

· Requirement: Vibration-resistant and impact-resistant crimping to ensure stability in harsh environments.

3.2 Petrochemical Industry

· Scenario: Corrosion-resistant hose connections in refineries and chemical pipelines, handling flammable/explosive media.

· Requirement: Fittings must meet API certification, with anti-static and leak-proof features.

3.3 Aerospace

· Scenario: Precision hose assemblies for aircraft hydraulic systems and aerospace equipment, requiring lightweight design and high reliability.

· Technology: CNC crimpers achieve ±0.01mm precision,  with hose testing machine for leak detection.

3.4 Automotive Manufacturing

· Scenario: Hose connections for EV battery cooling systems and braking systems, prioritizing compactness and low energy consumption.

· Trend: Electric crimpers are replacing traditional hydraulic models due to low noise and easy integration.

3.5 Maintenance and After-Sales

· Scenario: On-site repair of industrial equipment and emergency hose assembly production, requiring portable solutions.

· Solution: Mobile hydraulic crimpers paired with cutting-stripping units, suitable for vehicle-mounted or air transport.

4. Technical Trends: Intelligence and Greenization Driving Industry Upgrades

With the advancement of Industry 4.0 and environmental requirements, hydraulic hose crimping equipment is evolving toward:

4.1Green and Energy-Efficient

· Electrification: Servo motor-driven systems replace traditional hydraulics, reducing energy consumption by 30–50% and minimizing oil pollution.

· Lightweight Design: High-strength aluminum alloy bodies reduce equipment weight for improved mobility.

4.2 Flexible Production

· Quick Die Change Technology: Pneumatic or electric quick-release mechanisms enable minute-level switching between different hose specifications.

· Customization Services: Development of special dies for non-standard fittings and irregular hoses.

5. Key Factors in Choosing a Crimping Machine

When selecting hydraulic hose crimpers and equipment, consider:

1. Production Scale: Manual/electric models for small batches; fully automated CNC lines for mass production.

2. Hose Specifications: Confirm diameter range, pressure rating, and fitting standards for compatibility.

3. Industry Certifications: CE compliance for export or high-end markets.

4. After-Sales Service: Prioritize suppliers offering installation, training, and custom die services.

Conclusion

Hydraulic hose crimper machines and equipment act as the "invisible guardians" of industrial connections, with technological advancements driving efficiency and intelligence across sectors. Whether for the high-strength demands of construction machinery or the precision requirements of aerospace, these tools ensure reliable performance under pressure. As green manufacturing and digital transformation progress, hydraulic crimping technology will continue to innovate, powering global industrial upgrading with precision and reliability.
