Industrial-Grade Hydraulic Hose Crimper: Enhancing Pipeline Connection Reliability

In the complex pipeline systems of industrial production, the reliability of hydraulic hose connections is directly related to equipment operation safety and production efficiency. As a core equipment for achieving precise pipeline connections, industrial-grade hydraulic hose crimpers, with their stable crimping performance and accurate pressure control, have become a key link in ensuring the efficient operation of hydraulic systems.

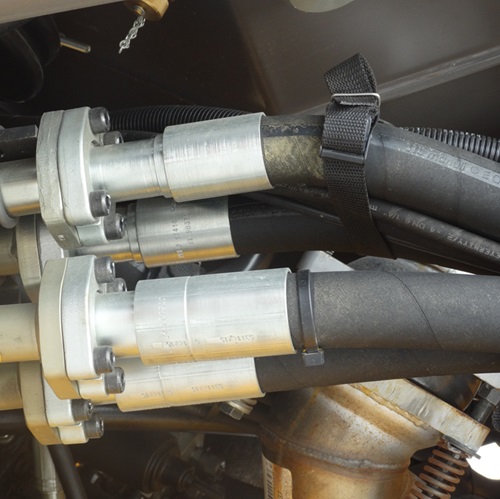

10.1

The core value of industrial-grade hydraulic hose crimpers lies in solving the inherent defects of traditional connection methods. Traditional manual or semi-automatic crimping equipment is prone to problems such as uneven crimping pressure and dimensional deviations, leading to pipeline joint leakage, insufficient pressure resistance, and even serious consequences such as equipment shutdown and oil contamination. However, industrial-grade equipment, through the combination of a hydraulic drive system and a digital control system, can achieve a pressure regulation accuracy of 0.1MPa level, ensuring that the metal framework of the hose and the joint are tightly engaged during the crimping process, forming a uniform and stable sealing structure, and significantly reducing the risk of leakage.


In terms of technical characteristics, high-quality industrial-grade hydraulic hose crimpers have multiple advantages. The crimping dies made of high-strength alloy steel can be adapted to a variety of pipe diameters (usually covering the range of 6-51mm), meeting the connection needs of different specifications of hydraulic hoses; the built-in pressure sensor and intelligent feedback system can monitor the crimping process in real-time. Once pressure abnormalities or dimensional deviations occur, the equipment will automatically shut down and alarm, effectively preventing unqualified joints from entering subsequent processes.

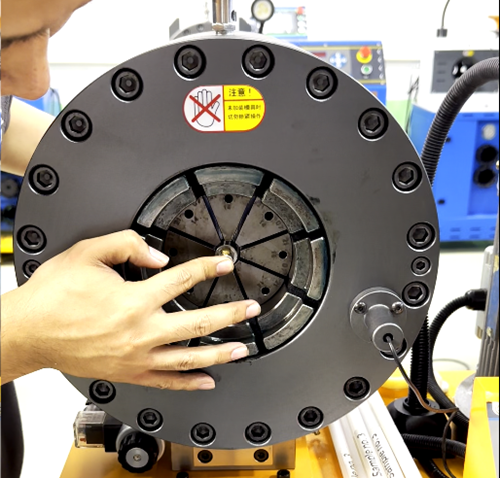

19.1

When selecting a model, comprehensive consideration should be given to the actual working conditions. For high-pressure hydraulic systems (such as construction machinery and metallurgical equipment), priority should be given to models with a rated crimping pressure of ≥300MPa to ensure that the joints can withstand the peak pressure of the system; in automated production lines, they can be matched with robotic arms and conveyor lines to achieve unmanned operation. Through the linkage between the PLC control system and the production line master control platform, automatic retrieval of crimping parameters and data traceability can be realized. In addition, the maintenance convenience of the equipment cannot be ignored. Choosing products with mold replacement time ≤10 minutes and modular design of key components can significantly reduce the cost of shutdown maintenance.


In daily use, regular maintenance is the key to extending the service life of the equipment and ensuring connection reliability. It is recommended to filter or replace the hydraulic oil every 500 hours of operation to avoid wear of the pump body and valve body caused by oil impurities; check the wear of the crimping die weekly. When the die edge has a depression of more than 0.2mm, repair or replace it in time to prevent poor joint sealing due to reduced die accuracy.

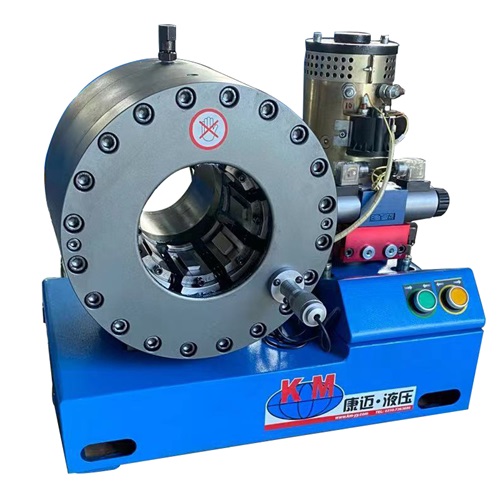

31.1

Industrial-grade hydraulic hose crimpers provide a stable and reliable solution for pipeline connections through technological innovation and precise control. Whether it is the sealing guarantee under high-pressure working conditions or the efficiency improvement in automated production, their core value lies in reducing joint failures, lowering equipment operation and maintenance costs, and ultimately creating greater production benefits for enterprises.
