In many industries, from agriculture and automotive to construction and manufacturing, hydraulic systems are crucial for powering equipment. At the heart of these systems are high-pressure hoses that deliver fluid between pumps, valves, and actuators. Ensuring the strength and integrity of these hoses is essential for safe and reliable operations, and that’s where hose crimping machines come in.
A hose crimping machine is designed to securely attach fittings to hydraulic hoses, forming a leak-proof and pressure-resistant connection. These machines help produce professional-grade hose assemblies quickly and efficiently. However, despite their vital function, hose crimping machines are often misused—especially by inexperienced operators. Even small errors in the crimping process can result in hose failure, fluid leaks, equipment downtime, or even serious accidents.
This article explores the most common mistakes to avoid when using a hose crimping machine. Whether you're a first-time operator or a seasoned technician, understanding these pitfalls will help ensure safer, more reliable hose assemblies and reduce unnecessary costs.
Misunderstanding the Hose and Fitting Compatibility
One of the most frequent and dangerous mistakes is crimping a hose and fitting that are not designed to go together. Every hose and fitting has specific dimensions, tolerances, and pressure ratings. If the fitting doesn’t properly match the hose type or size, the connection will be weak—no matter how tight the crimp is.
Manufacturers typically provide detailed compatibility charts to guide you. Some fittings are only rated for certain hose constructions—such as 1-wire, 2-wire, or 4-wire braided hoses. If you use the wrong combination, the hose may leak or burst under pressure.
Always verify the part numbers of both hose and fitting, and double-check with the manufacturer’s specifications. Using a matched system (hose, fitting, and die) from the same brand is the safest approach.
Failing to Measure and Cut the Hose Correctly
Another common issue arises at the very beginning of the process: cutting the hose. If the hose is not cut squarely and cleanly, the fitting will not sit properly. This can create uneven crimping pressure or gaps that compromise the seal.
Avoid using dull blades or cutting tools that fray the hose reinforcement. Use a sharp, purpose-built hose-cutting saw or blade that delivers a clean, perpendicular cut. After cutting, inspect the hose for debris or rubber particles that could interfere with crimping or contaminate the hydraulic system.
Also, take care to measure the hose length accurately. Improper measurement can result in assemblies that are either too short or too long, leading to tension, slack, or bending that stresses the crimped connection.
Ignoring Die and Crimp Diameter Specifications
Each crimping job requires the use of a specific die set and crimp diameter. One of the most costly mistakes is using the wrong die or failing to adjust the crimp diameter properly. This can lead to either under-crimping (where the fitting is too loose) or over-crimping (where the fitting is damaged or the hose is crushed).

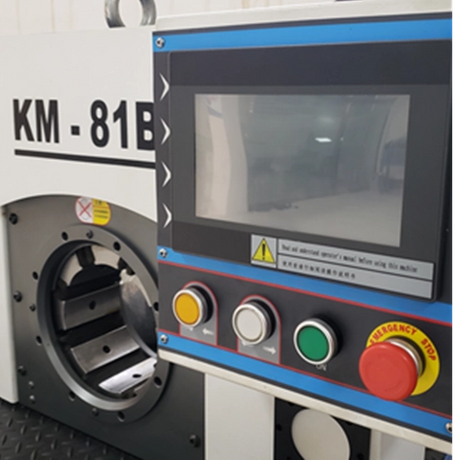

Modern hose crimping machines often come with digital settings, preset modes, or adjustment dials. However, operators must still manually select the correct die set and input the correct crimp dimensions. Always refer to the crimping chart provided by the hose manufacturer, which indicates the right combination of dies and crimp diameters for each hose-fittings pair.
Once the crimp is made, use a vernier caliper or micrometer to measure the outer diameter of the crimp. Make sure it falls within the acceptable tolerance range. Neglecting this step can allow unsafe assemblies to be installed unknowingly.
Incorrect Positioning of the Hose and Fitting in the Crimper
Proper placement of the hose and fitting into the crimping head is essential for a uniform and secure crimp. A common error is inserting the hose too shallow or too deep, which causes misalignment between the fitting and the die set.
If the fitting is not perfectly centered in the die cavity, the crimp may be uneven. This can result in a side-loaded or skewed fitting, reducing the strength of the connection or even damaging the fitting permanently.
Before starting the crimping operation, confirm that the hose and fitting are seated flush against the die backstop or alignment marks. Some machines include positioning guides to help with this step. Never rush this part of the process—proper alignment is critical.
Skipping Lubrication (When Required)
Certain hose types or fittings may require light lubrication before crimping. This is especially true for tight-fitting assemblies where friction can damage the internal surface of the hose or distort the fitting.
Failing to apply lubricant when needed can result in torn hose liners, stuck fittings, or inconsistent crimp diameters. On the other hand, over-lubrication or using the wrong type of grease can also cause problems, such as contamination or slippage.
Only use the manufacturer-recommended lubricant, and apply it sparingly and evenly. If in doubt, refer to the crimping procedure documentation or consult technical support.
Crimping in Dirty or Dusty Conditions
Hydraulic systems are sensitive to contamination. Even tiny particles of dirt, metal, or moisture introduced during crimping can cause major problems later—like clogging, internal abrasion, or premature wear.
Always clean the hose ends and fittings before assembly. Use compressed air or a lint-free cloth to remove debris. Store hoses and fittings in a clean environment, and never crimp hoses in a dusty or greasy workspace.
Some workshops use sealing plugs to keep hoses clean after cutting. Adopting similar hygiene practices will protect the longevity of both the hose assembly and the machinery it supports.
Overusing a Worn-Out Die Set or Machine
Just like any mechanical tool, hose crimping machines and their die sets wear out over time. Using worn dies or a machine in poor condition can result in inconsistent crimping and even damage to hoses or fittings.
Inspect the die faces regularly for cracks, dents, or wear patterns. Replace any damaged dies immediately. If the crimping machine shows signs of hydraulic leaks, electrical faults, or uneven crimping force, schedule maintenance right away.
Routine servicing and calibration are essential to maintain machine accuracy. Keep a maintenance log and follow the manufacturer’s guidelines to extend the life of your equipment and ensure crimping precision.
Crimping Without Proper Training
Many people assume hose crimping is a simple push-button operation. In reality, it requires technical knowledge, attention to detail, and an understanding of pressure ratings, hose construction, and safety standards.
Untrained workers are more likely to make errors in measurement, alignment, and die selection. These mistakes may not be immediately obvious, but they can lead to hose failures under load.
Invest in proper training for all operators. Many manufacturers offer online tutorials, certification courses, and in-person demonstrations. Make sure each team member knows how to interpret crimp charts, perform measurements, and operate the machine safely.
Rushing the Crimping Process
Time pressure is common in repair shops and maintenance departments, but rushing a crimping job often leads to overlooked steps and poor-quality work. Skipping inspections, forcing fittings into the die, or using the wrong die "just this once" can all result in a failed hose assembly.
A hose that fails during operation can spill hydraulic fluid, damage equipment, or cause injury. The consequences of a rushed crimp can be expensive and dangerous.
Always follow the complete process:
Measure and cut the hose accurately
Select the correct fitting and die
Align components properly
Crimp to the correct diameter
Inspect the finished crimp
Slowing down to do the job right the first time is faster—and safer—than redoing it later under more stressful conditions.
Ignoring Final Inspection
A hose assembly isn’t finished once it’s been crimped. One of the most common and preventable mistakes is skipping the final inspection step.
Every crimped hose should be inspected for:
Proper crimp diameter (measured with calipers)
Clean and burr-free cut ends
Correct alignment between hose and fitting
No visible cracks, deformities, or leaks
Some operations go further and pressure-test the assembly before installing it in equipment. This step is especially important for high-pressure or critical applications.
Don’t assume a crimp is good just because the machine completed the cycle. Final inspection is your last opportunity to catch a mistake before it causes a bigger problem.
Final Thoughts
Hose crimping is both a science and a craft. When done properly, it creates strong, leak-proof connections that ensure the safety and efficiency of hydraulic systems across industries. But when done poorly, the consequences can be costly and dangerous.
The most common mistakes—such as using mismatched components, skipping measurements, or misaligning the crimp—are entirely preventable with the right knowledge and attention to detail. By avoiding these pitfalls and following manufacturer guidelines, technicians can produce professional, reliable hose assemblies every time.
Whether you’re managing a full-scale hydraulic shop or running a small maintenance department, taking the time to do hose crimping correctly will protect your equipment, your workers, and your bottom line.
