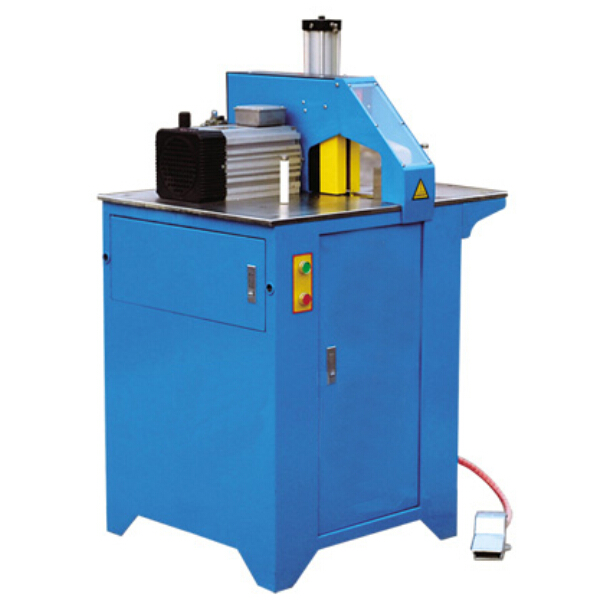

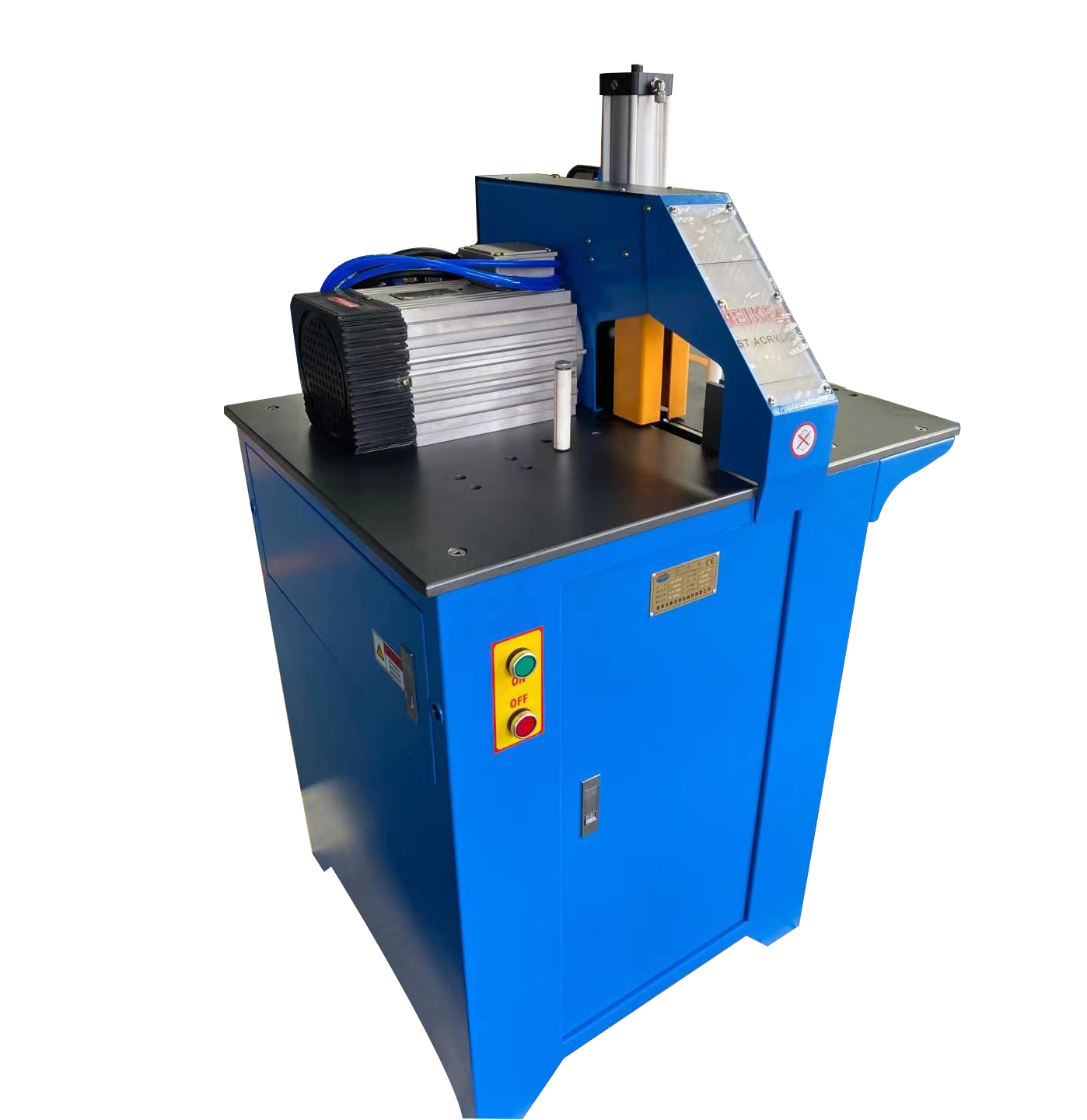

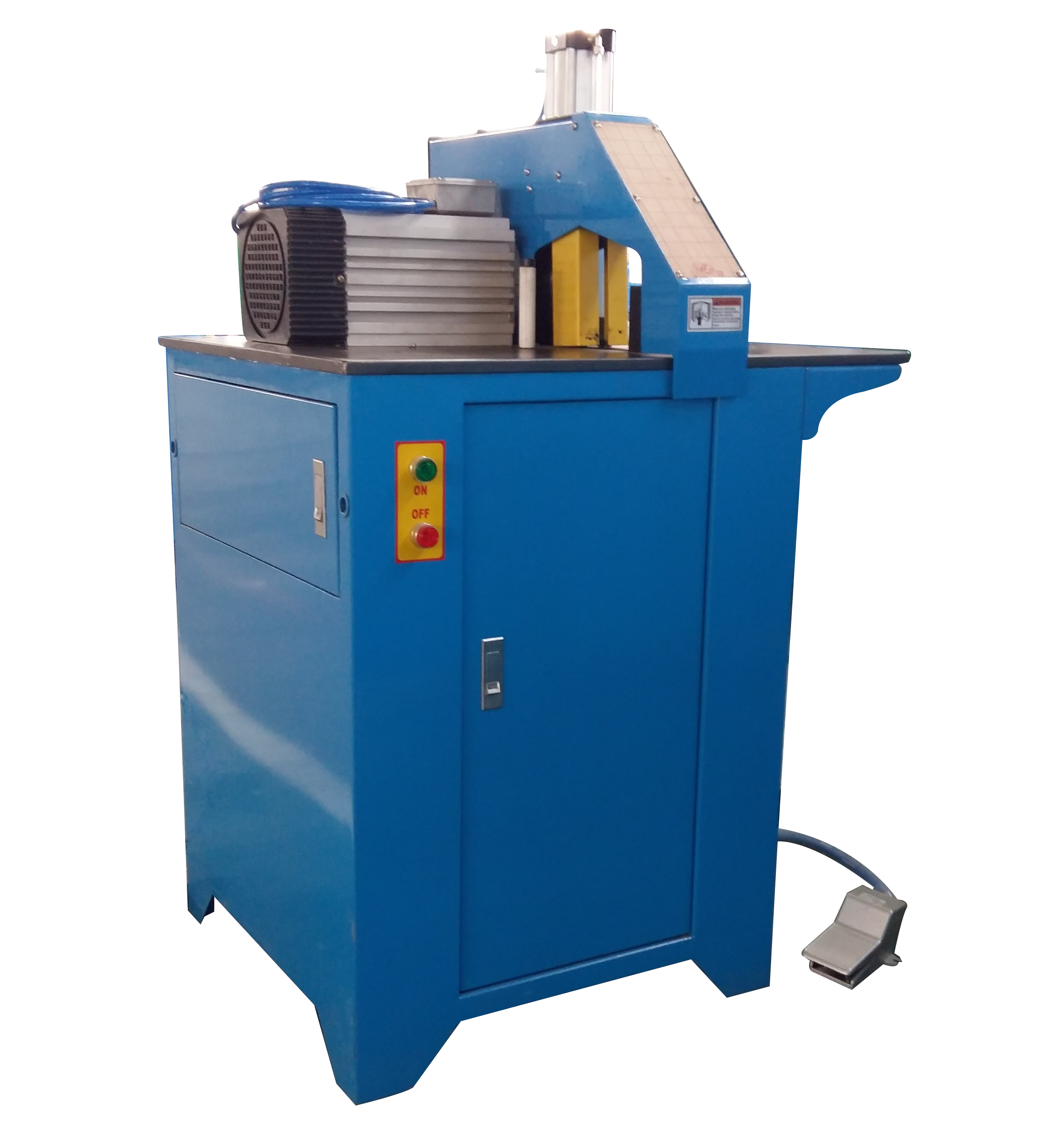

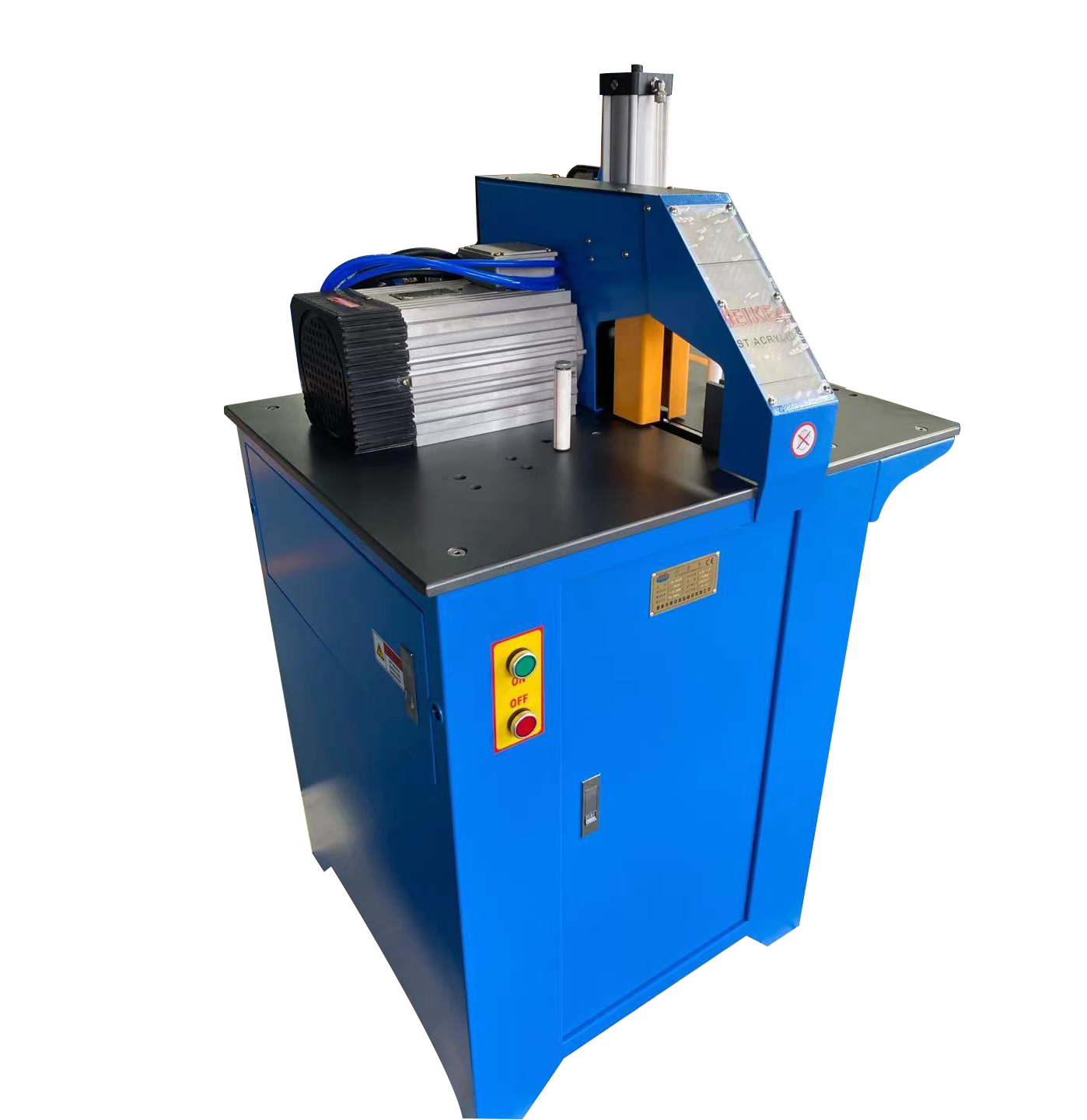

The KM-350B Hose Cutting Machine is a flagship heavy-duty industrial hose cutting solution developed by Kangmai Hydraulic, a leading manufacturer with over 10 years of expertise in high-precision hydraulic equipment.
Engineered for enterprise customers requiring stable, high-volume hose processing, this machine delivers exceptional cutting performance for hydraulic hoses with a diameter range of 1/4” to 2”. Built with advanced pneumatic-hydraulic conversion technology, it meets the stringent demands of industrial hose fabrication, hydraulic system integration, and heavy engineering applications, ensuring consistent cutting accuracy and long-term reliable operation in high-intensity working environments.
Core Advantages & Key Features
High-Strength Durable Cutting System

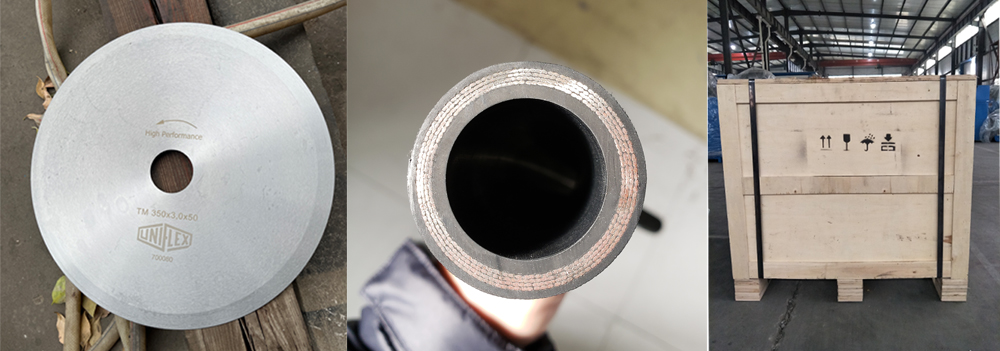

Equipped with a specially engineered high-strength cutting blade, the KM-350B Hose Cutting Machine offers outstanding wear resistance and an extended service life, reducing frequent blade replacement and downtime for industrial business users. The Φ350mm blade maintains sharp cutting performance even after long-term high-volume processing of multi-layer hydraulic hoses, ensuring clean, burr-free cuts every time.
This industrial hydraulic hose cutting machine features a continuously variable speed function, allowing operators to adjust the cutting speed according to hose material, wall thickness, and processing requirements, maximizing cutting flexibility and efficiency. The innovative pneumatic-hydraulic conversion structure delivers stable cutting force, eliminating uneven cuts and hose deformation, even when processing thick-walled, high-pressure hydraulic hoses.
Operator-Centric Health & Safety Design
Prioritizing the health of on-site operators, the machine is integrated with an automatic fume and dust removal system, which effectively captures and eliminates harmful dust and fumes generated during the cutting process. It also comes with a built-in automatic cooling function, preventing overheating of the blade and motor during continuous operation, while the noise level is controlled to ≤75dB, creating a safer and more comfortable working environment.
Technical Specifications
Parameter
Specification
Working Range
1/4” – 2”
Motor & Voltage
380V/5.5kW
Blade O.D.
Φ350mm
Rated Speed
2900r/min
Maximum Cutting Stroke
125mm
Noise Level
≤75dB
Machine Weight
163KG
Machine Dimension
810×635×1300(mm)
Industrial Applications & Target Industries
The KM-350B Hose Cutting Machine is tailored for industrial enterprise customers across mission-critical sectors, including aerospace manufacturing, oil and gas extraction, heavy engineering machinery manufacturing, hydraulic system integration, marine and shipbuilding industries, mining equipment fabrication, and metallurgical hydraulic equipment maintenance.
Customization Solutions & Supporting Accessories
To meet the diverse needs of our industrial partners, we offer comprehensive customization solutions for the KM-350B Hose Cutting Machine, including regional voltage adaptation (customizable 220V/415V power supply), blade material upgrades for special hose materials, and customized control systems for automated production line integration. We also provide a full range of supporting accessories, including genuine replacement blades, dust removal filter elements, and matching hydraulic hose processing equipment to build a complete hose processing solution for your business.
FAQ
What is the maximum cutting diameter of the KM-350B Hose Cutting Machine?
The KM-350B Hose Cutting Machine supports a cutting range of 1/4” to 2”, covering most common specifications of high-pressure hydraulic hoses used in industrial applications.
Does this machine support voltage customization for different regions?
Yes, we offer customized voltage solutions to match the power standards of different regions, ensuring seamless integration into your production facility worldwide.
Does the machine have an automatic cooling function?
Yes, it is equipped with a built-in automatic cooling system to prevent overheating of the blade and motor during long-term continuous operation.
Inquire Now
Are you looking for a reliable heavy-duty industrial hydraulic hose cutting machine for your high-volume production? Contact our technical sales team today to get a customized quote for the KM-350B Hose Cutting Machine, along with detailed technical support and a tailored hose processing solution for your business. We offer global after-sales support and fast delivery for bulk orders, serving enterprise customers worldwide.
