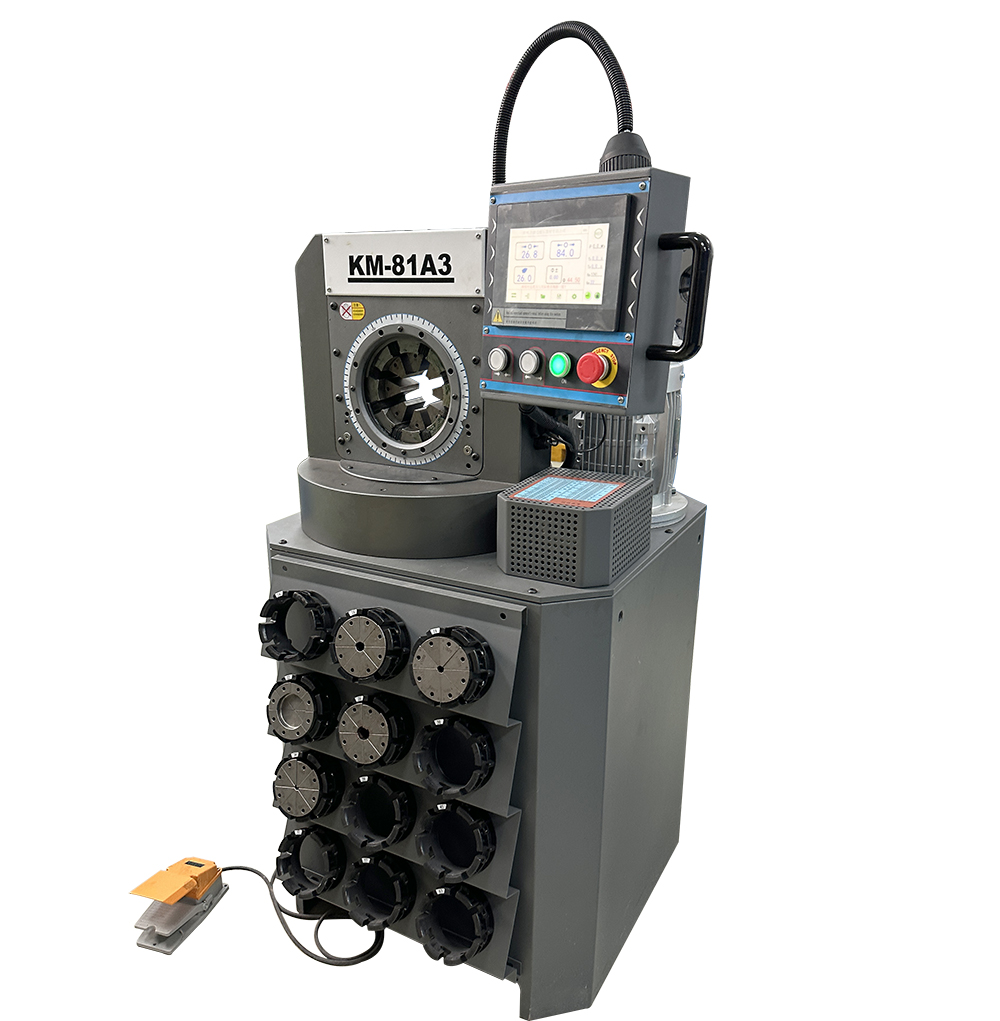

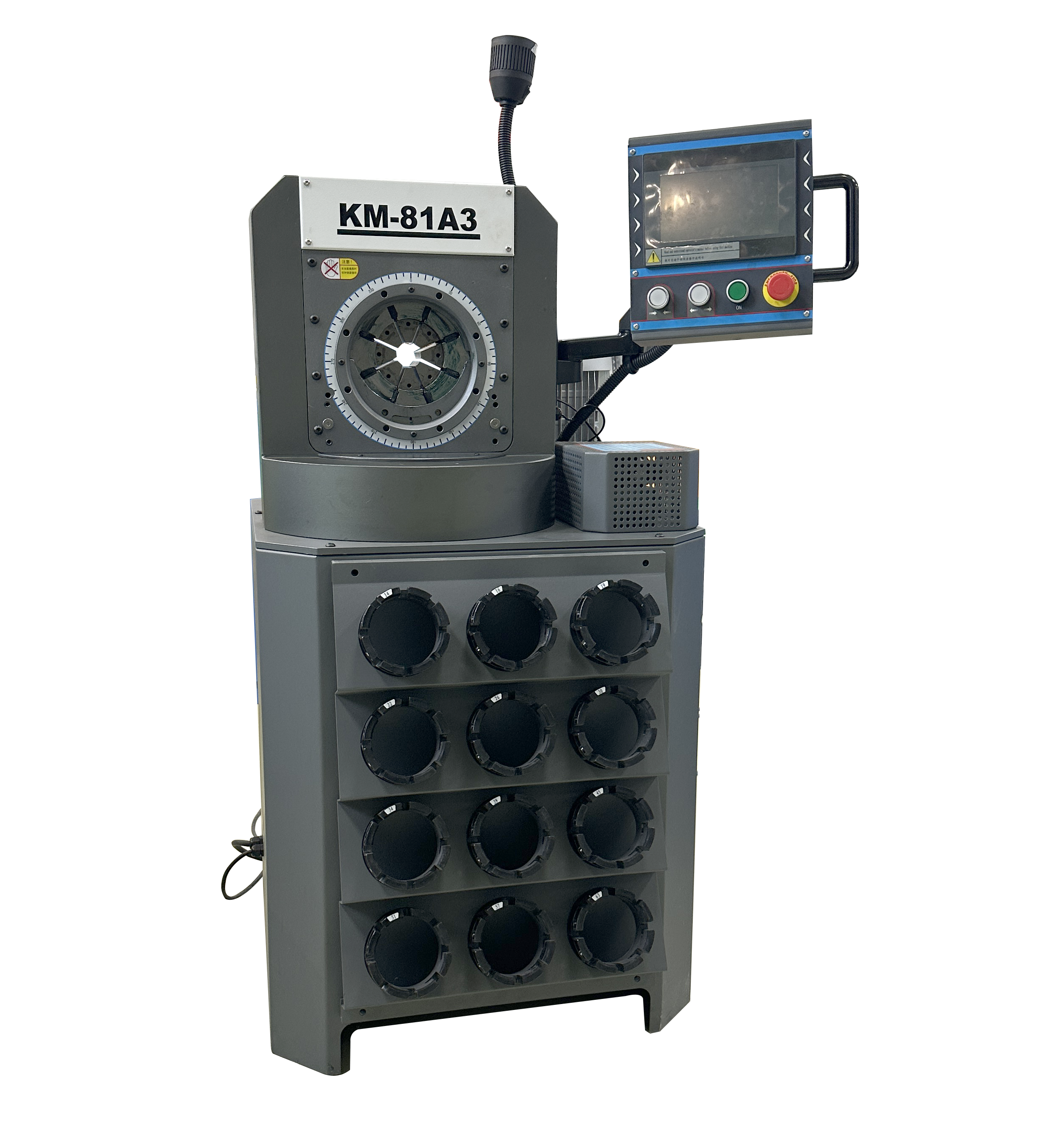

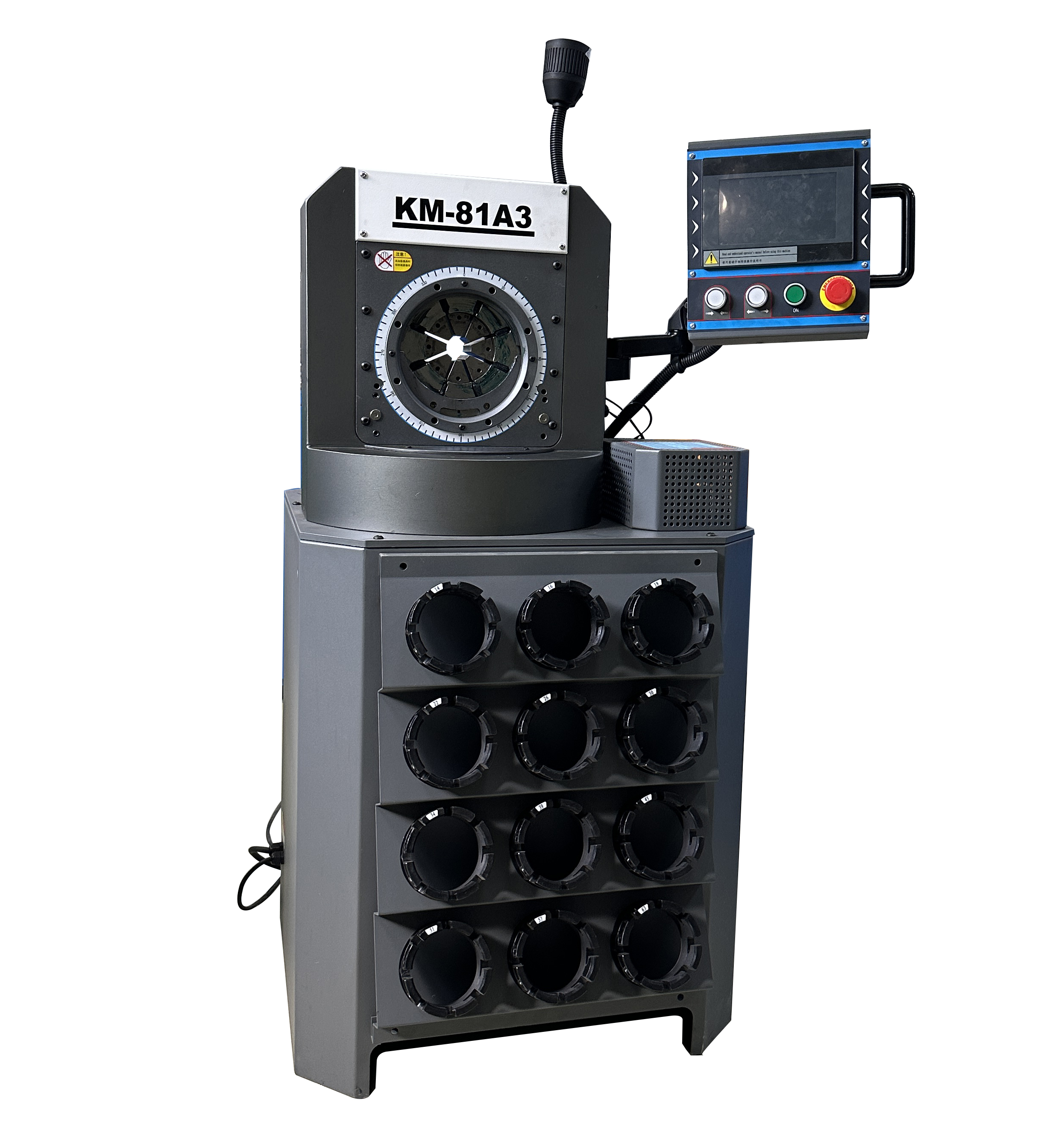

KM-81A3 Supper Thin Crimping Machine

▓Supper thin KM-81A3 hose crimping machine Key Capability:

   1. 2" 4Wire Hydraulic hose capability

   2. 90 degree length fitting crimp capability

   3.Cam lock crimp capability

   4.Fast speed  and two speed crimp capabilty

   5. Standard swaging range：8 to 79mm diam.

█ Dynamic technical sheet of Supper thin hose crimping machine KM-81A3

• Physical dataof Hose crimping machine KM-81A3


 Shipping Space(mm)                                     930*900*1550mm

Shipping Weight(Kg)           610Kg

Machine weight (without oil）      540Kg

Machine size(mm)                        810*720*1300mm

• Electrical data of Hose crimping machine KM-81A3


1.  Supply (Volts/Amps)                            380/6.64

2.  Optional Volts                                     110/ 220V/240/415V/440V

3.  Phase                                                    3Phase

4.  Optional phase                                     1Phase

5.  Power                                                    3Kw

6. Hertz                                                       50hz/60hz

• Hydraulic data of Hose crimping machine KM-81A3


Rated Pressure(Bar)                                    300

Pump    （L）                                             13

Reservoir Capity(Litres)                              98

◆After sales service support

〓Standard dies with KM-8A3 hose crimping machine

 12 dies set supplied as a package to allow infinite crimping between 14mm to 73mm finished swage size

※If you need customized dies size as per your hose crimping project, contact with us.

〓Standard accessories with machine shipping

※Optional accessies with machine shipping
