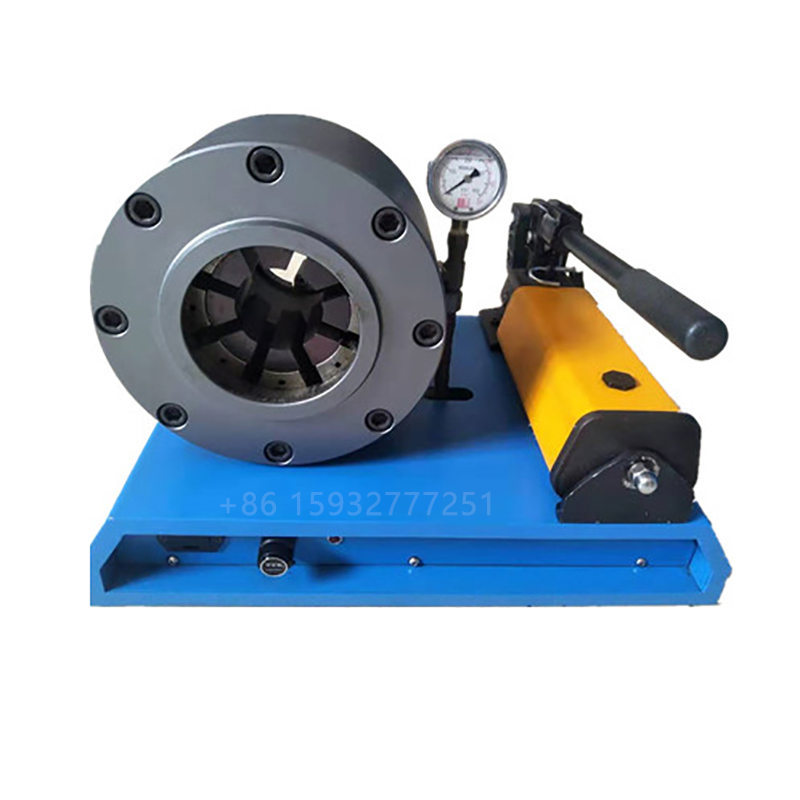

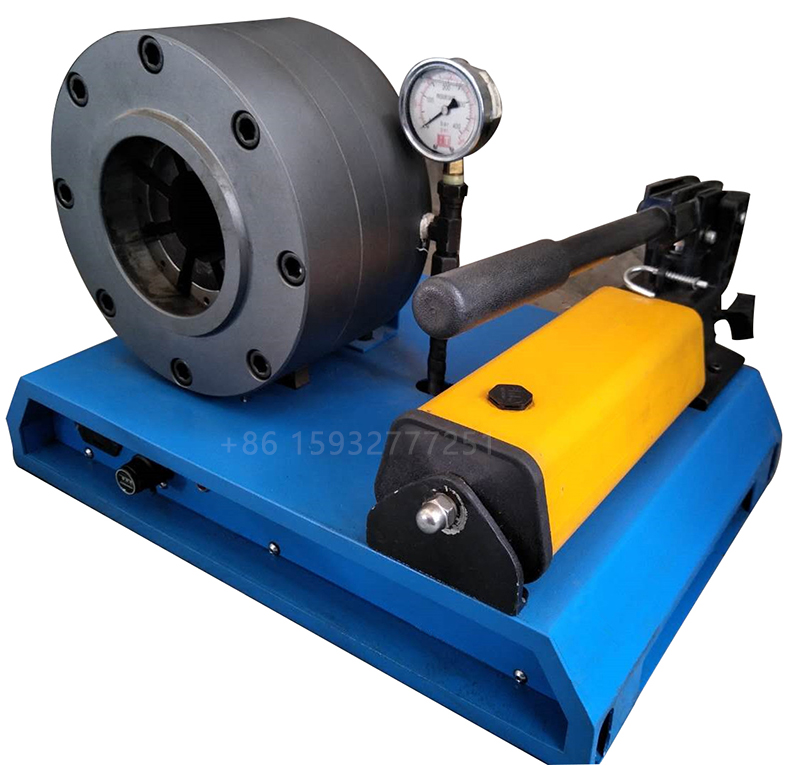

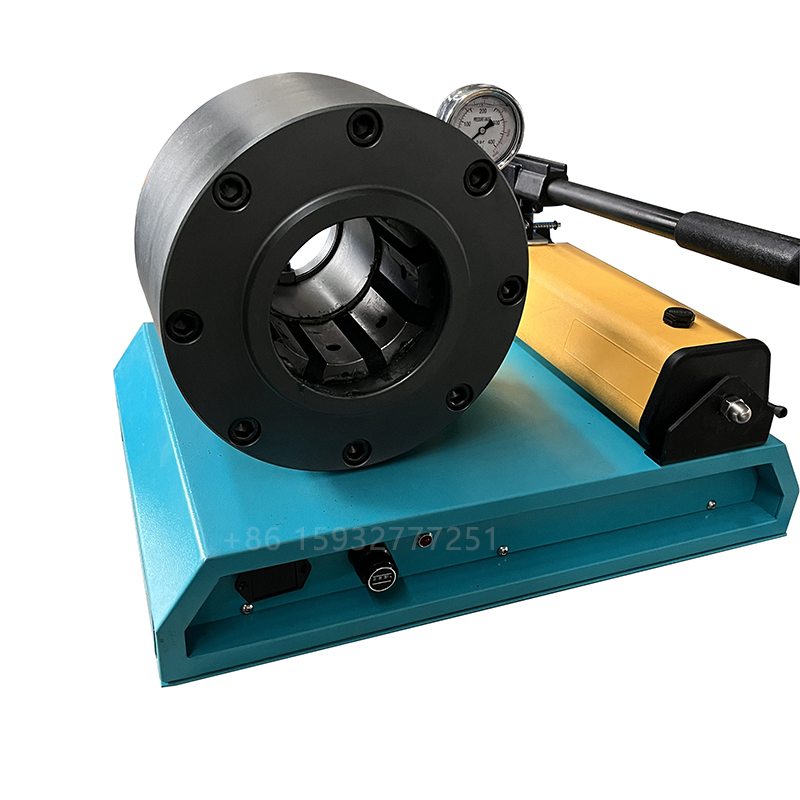

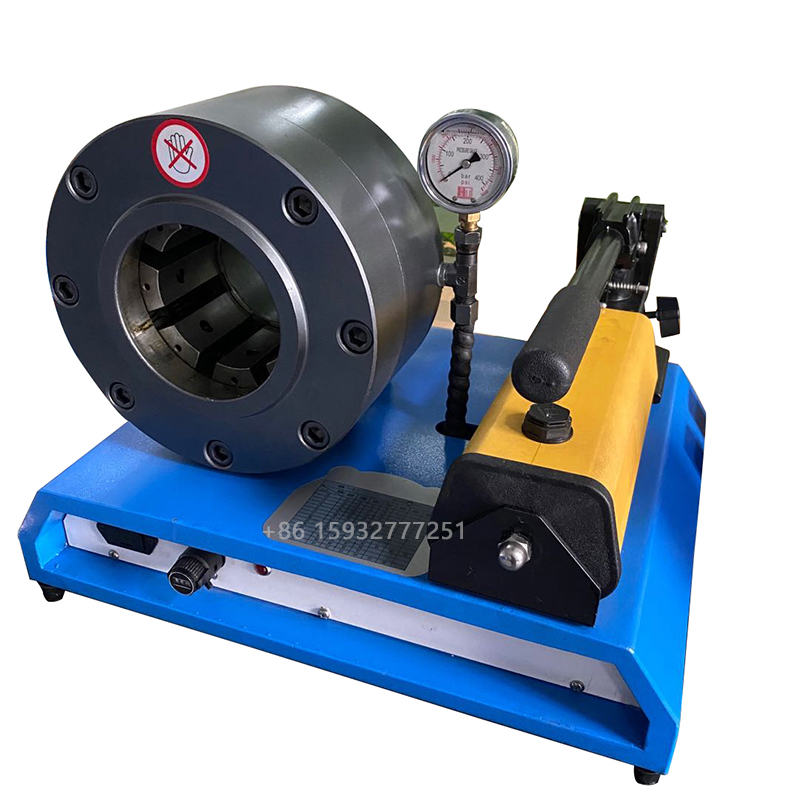

KM-92S-B Manual Hose Crimping Machine

-Special die base for fast crimping.
-Load-off hand-wheel speed up the backward.
-The light is on when crimping to the pre-size.
-Small volume and light weight
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button

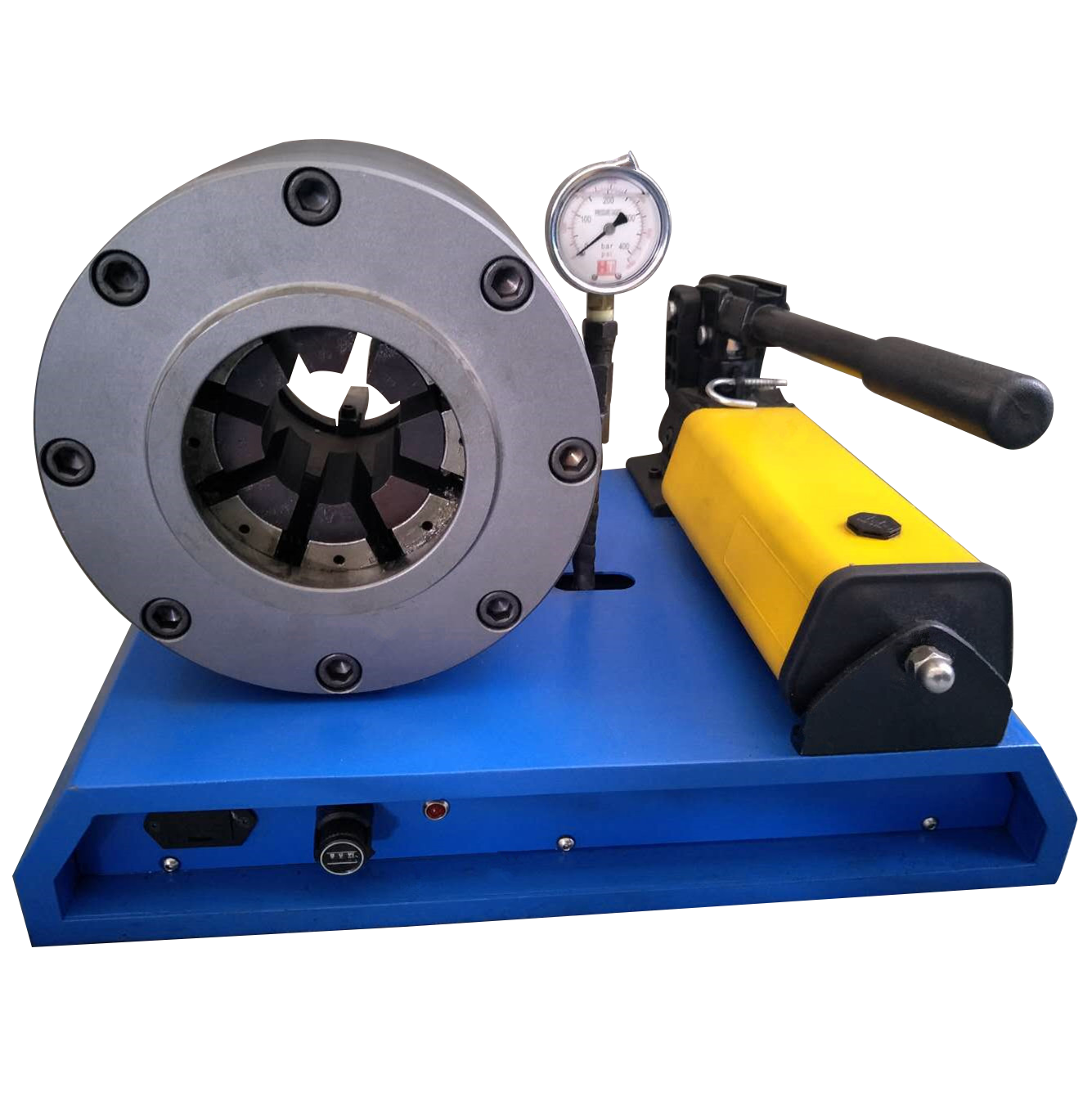

1

-Special die base for fast crimping.

-Load-off hand-wheel speed up the backward.
-The light is on when crimping to the pre-size.
-Small volume and light weight

Crimp range

1/8”-1 1/4" 2SN

Max opening without dies

53mm

Max die opening

18mm

Die sets

7 Sets

Systematic pressure

35Mpa

Machine weight

26.5KG

Machine dimension

305*370*270(mm)

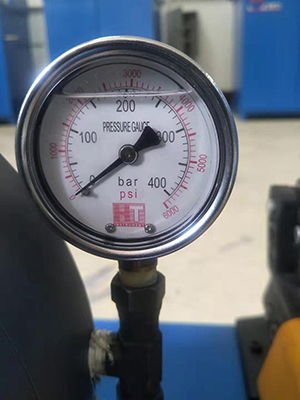

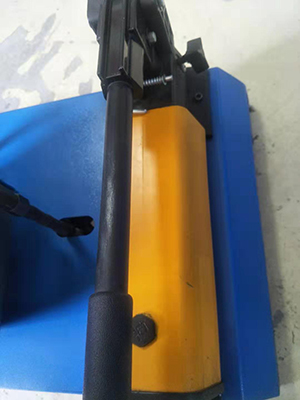

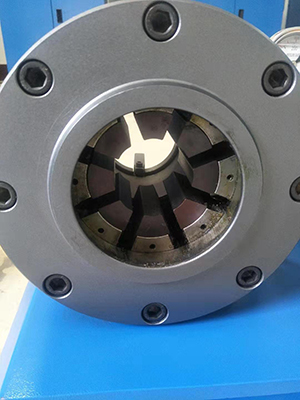

部分2部分4部分5部分6

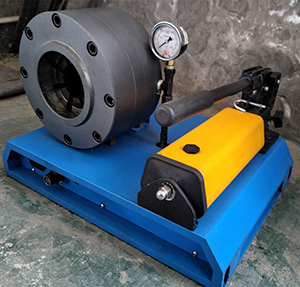

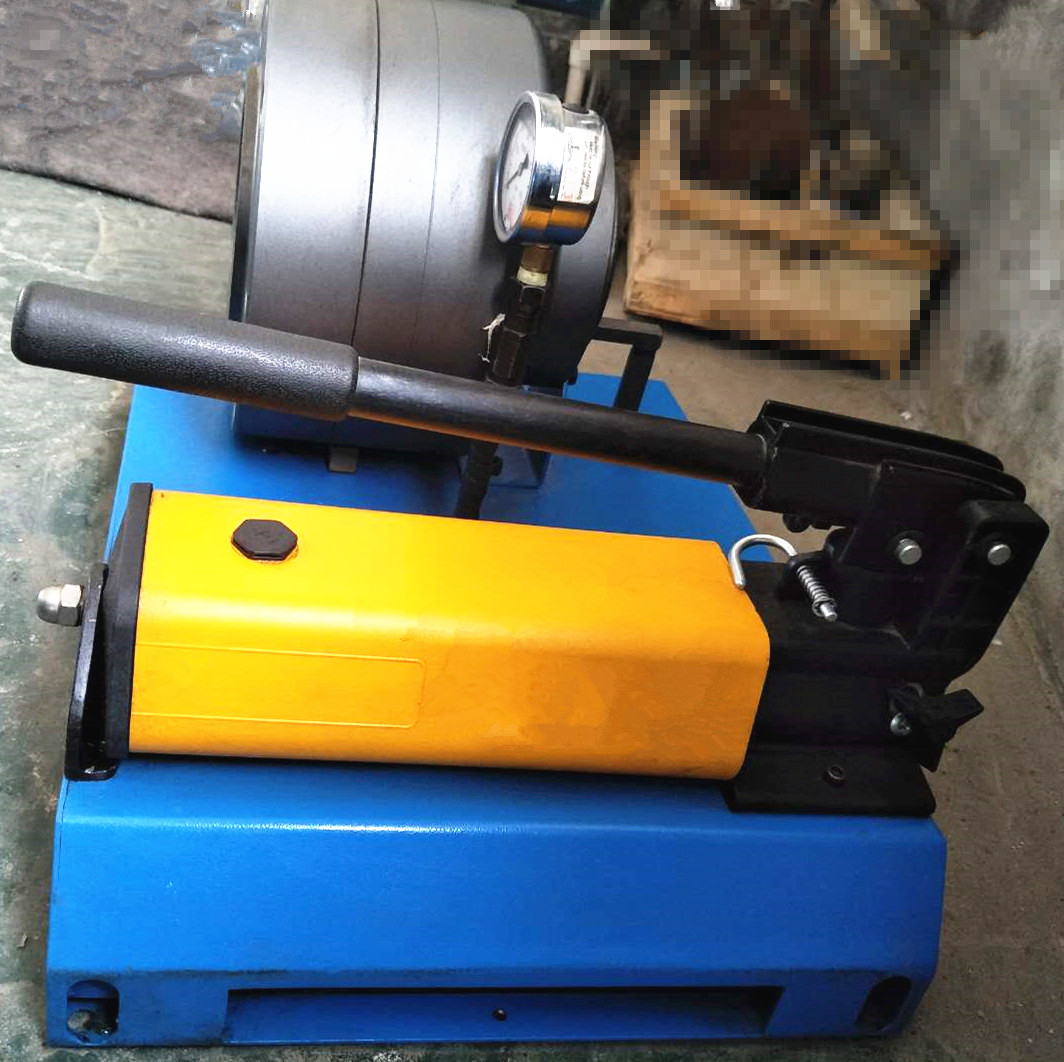

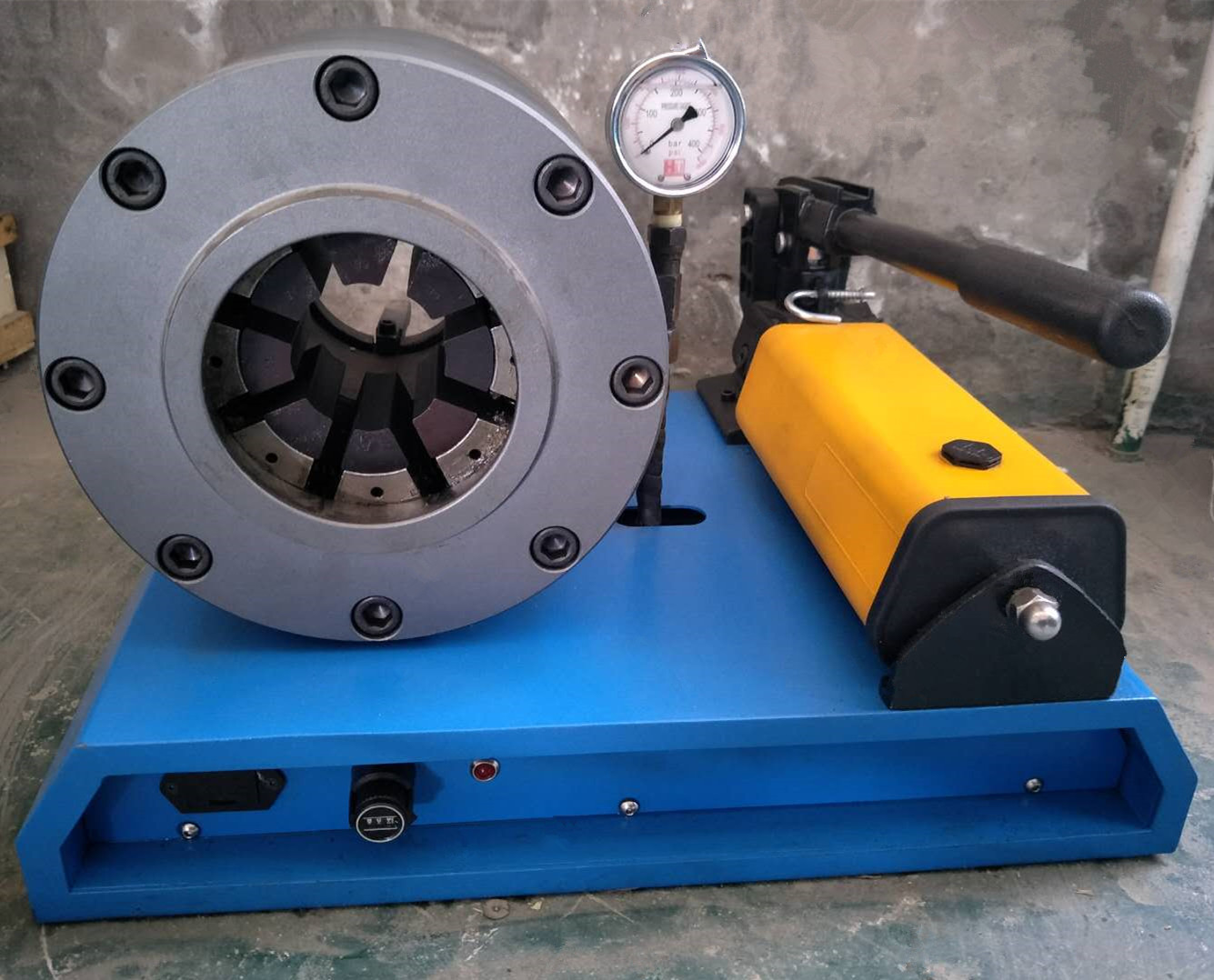

横 部分1KM-92S-B右KM-92S-B正面

A High-Performance Crimping Machine with Excellent Features

In the world of crimping machinery, the KM-92S-B has emerged as a standout option, thanks to its well-designed features that cater to efficiency, convenience, and precision. Let's take a closer look at what makes this machine a valuable addition to any workspace.


The KM-92S-B is equipped with a special die base, which is a key factor in enabling fast crimping. This specially designed base ensures that the die is held securely and in perfect alignment during the crimping process. Such stability not only reduces the time spent on setting up the die but also allows for smooth and continuous crimping operations. Whether handling a variety of hose types or working on high-volume tasks, the special die base significantly cuts down on processing time, thereby boosting overall productivity.

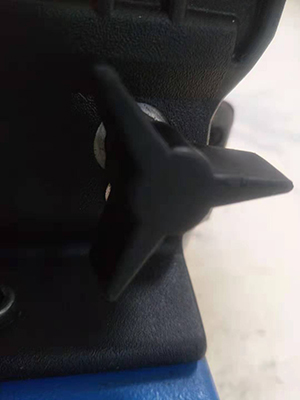

Another notable feature is the load-off hand-wheel, which plays a crucial role in speeding up the backward movement of the machine. After completing a crimping cycle, when the operator needs to reposition the workpiece or adjust the machine for the next task, the load-off hand-wheel comes into play. It allows for quick and effortless backward movement, eliminating the delays that can occur with traditional mechanisms. This not only makes the operation more efficient but also reduces the physical strain on the operator, especially during long working hours.


Precision is paramount in crimping, and the KM-92S-B addresses this with a handy indicator light. The light illuminates the moment the crimping reaches the pre-set size. This visual signal provides instant confirmation to the operator that the crimp has been done to the exact specification. It eliminates the need for constant manual checks and guesswork, ensuring that each crimp is consistent and meets the required standards. This feature is particularly beneficial in mass production, where maintaining uniformity in crimp quality is essential.


Despite packing in all these powerful features, the KM-92S-B maintains a small volume and light weight. This compact design is a boon for workspaces with limited floor area. It can be easily placed in tight corners or integrated into existing production lines without taking up too much space. Additionally, its light weight makes it highly portable. Operators can move it around the workshop with ease, adapting to different workstations as needed. This flexibility adds to the machine's practicality, making it suitable for both small workshops and larger industrial settings.


In summary, the KM-92S-B crimping machine combines a special die base for fast crimping, a load-off hand-wheel for quick backward movement, an indicator light for precise crimping, and a compact, lightweight design. These features work together to deliver an efficient, convenient, and reliable crimping experience, making it a top choice for those seeking a high-performance solution.
