Hydraulic Hose Crimping Machines And Accessories​

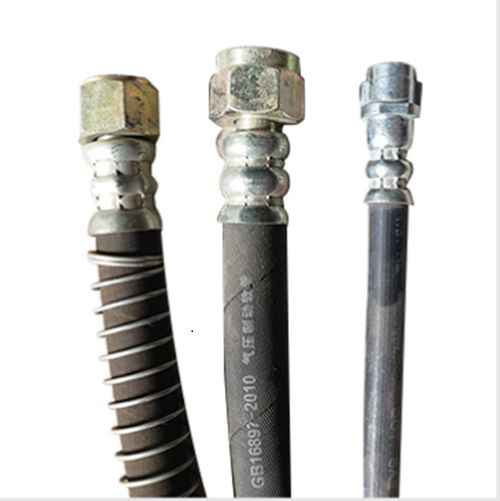

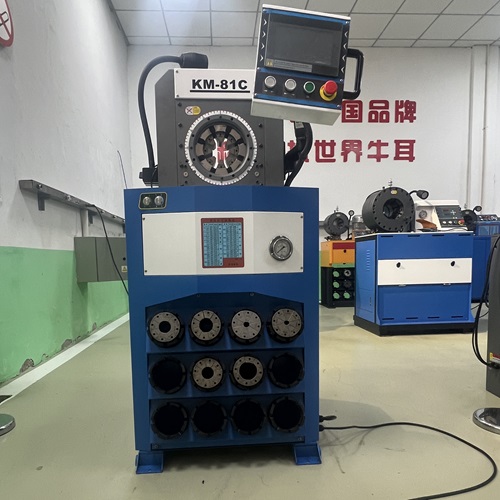

Hydraulic hose crimping machines, often referred to as crimpers or tube shrinking machines, are crucial hydraulic equipment used for crimping hydraulic tubing joint fittings. Their working principle relies on the contraction force generated by the hydraulic system. Through molds, metal joints are firmly crimped onto hydraulic tubing and rubber hoses.

These machines have a wide range of applications, suitable for crimping high-pressure rubber hoses, hydraulic hoses, air pipes, water pipes, cable joints, and air conditioning pipes of various machinery. They can be found in numerous industries, such as vehicle manufacturing, construction machinery, coal mining, hydraulic equipment production, home appliance manufacturing, and welding and cutting equipment. For example, in the construction machinery field, a large number of hydraulic hoses used in hydraulic systems need to be connected with joints through crimping machines to ensure the stable operation of the hydraulic system. With the continuous improvement of industrial automation, hydraulic hose crimping machines are trending towards greater intelligence and higher precision. Some new crimping machines are equipped with numerical control systems, enabling precise setting and monitoring of crimping parameters. This not only improves crimping efficiency but also effectively reduces product quality issues caused by human errors.

When purchasing hydraulic hose crimping machines, there are many key points to consider. Regarding the performance of the equipment itself, the method of "one look, two listens, three measurements" can be used to distinguish the good from the bad. "One look" means observing whether the hydraulic components and electrical elements used in the equipment are produced by well-known brands or regular manufacturers, whether the circuit configuration is neat, whether the design of the oil station pipeline is reasonable, and whether there is any oil leakage at the joints. "Two listens" means listening to the operation sound after the equipment is powered on. Abnormal noise may be caused by issues such as the misalignment of the coaxiality of the motor and oil pump installation, the improper selection of oil pump displacement and pipe diameter, or poor quality of the motor and oil pump. "Three measurements" means making the equipment run idly and touching the die base block by hand; there should be no jitter. After crimping a sample joint with the mold, use a caliper or micrometer to measure, and the roundness and taper should be controlled within 0.1mm. It is also necessary to check the hardness of the die base and the mold, as well as the evenness of the eight petals of the die base and the flatness of the mold.

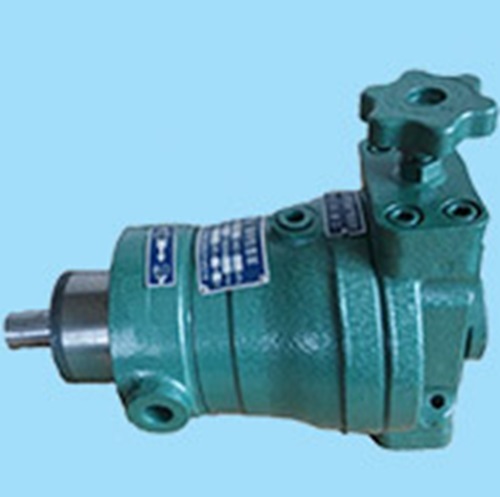

The accessories of hydraulic hose crimping machines, such as hydraulic pumps, directional control valves, and safety valves, directly affect the performance of the equipment. High-quality hydraulic components are more expensive but can ensure the stable operation of the equipment. For example, for the same model of piston pump, there are significant price differences among different manufacturers, and the quality also varies. As an important accessory, the oil seal, although seemingly simple, plays a crucial role in preventing internal oil leakage. A high-quality oil seal can extend the working time and service life of the equipment.

During daily use, attention should be paid to the installation, debugging, and maintenance of the equipment. Forklifts are suitable for handling, with the bottom bearing the force. It is strictly prohibited to invert the equipment or carry the head, motor, and electrical box parts. The equipment should be installed horizontally on a stable foundation and grounded. When refueling, add the specified type and appropriate amount of anti-wear hydraulic oil. After connecting to the power supply, pay attention to the rotation direction of the motor. If it does not match, promptly change the position of the power cord. Regularly inject anti-wear lubricating oil onto the moving surface of the die base. After work, open the die base to the maximum extent to maintain the spring and cylinder oil seal. Cover the dust cover during non-working hours to prevent debris from falling in. If any abnormalities occur during use, stop the machine immediately and seek professional inspection and maintenance.
