What are the components of a hydraulic hose crimping machine?

As a crucial piece of equipment in hydraulic systems, hydraulic hose crimping machines are widely used in numerous fields, including construction machinery, automotive manufacturing, and industrial production. They can firmly crimp metal connectors onto both ends of hydraulic hoses, creating a reliable connection that ensures the normal operation of the hydraulic system. Understanding the components of a hydraulic hose crimping machine is of great significance for proper operation, equipment maintenance, and the stability of the hydraulic system.

Frame

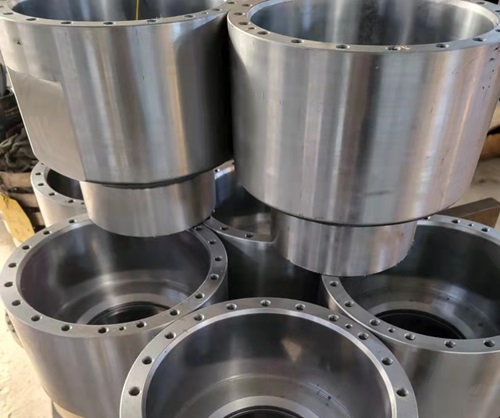

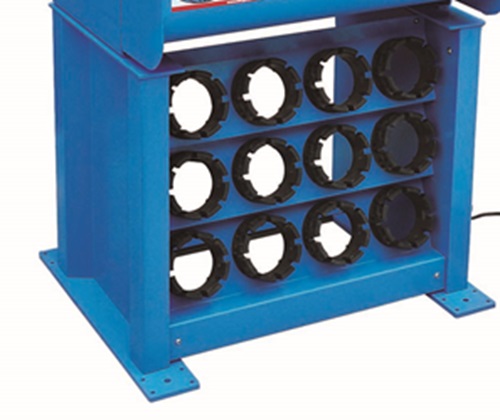

The frame is the basic supporting structure of the hydraulic hose crimping machine, usually made of high-strength steel or cast iron. It not only bears the weight of the equipment itself but also withstands enormous pressure during the crimping process. Therefore, it needs to have sufficient rigidity and stability. A sturdy frame ensures that the crimping machine does not shake or displace during operation, providing a solid foundation for the normal operation of other components. For example, in crimping machines used in some large construction machinery, the frame is welded from thick steel plates and undergoes strict heat treatment processes to enhance its strength and durability.

Hydraulic Cylinder
The hydraulic cylinder is the core component of the crimping machine. Its working principle is based on Pascal's law, where the pressure of the hydraulic oil pushes the piston to move linearly within the cylinder. The piston is connected to the piston rod, which is then connected to the crimping die or worktable. When the hydraulic oil enters the rod chamber or rodless chamber of the hydraulic cylinder, the piston generates thrust under pressure, driving the piston rod to move and thus realizing the crimping operation of the hydraulic hose and connector. The sealing performance of the hydraulic cylinder directly affects the working efficiency and stability of the crimping machine. High-quality seals can prevent hydraulic oil leakage and ensure the effective transmission of pressure.

Hydraulic Pump Station

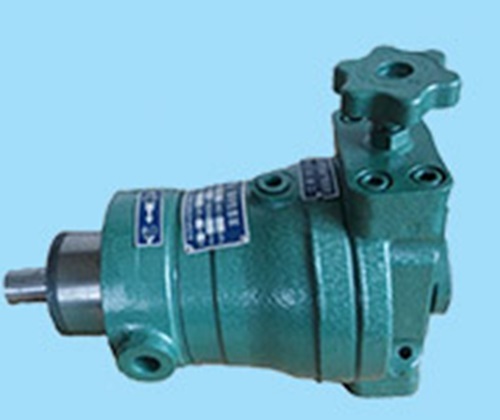

The hydraulic pump station is the power source of the crimping machine, mainly consisting of a motor, hydraulic pump, oil tank, filter, and various control valves. The motor provides power to the hydraulic pump, which pumps the hydraulic oil from the oil tank, pressurizes it, and delivers it to the hydraulic cylinder through high-pressure oil pipes. There are various types of hydraulic pumps, with common ones including gear pumps, vane pumps, and piston pumps. Different types of pumps are suitable for different working pressure and flow requirements. The oil tank stores hydraulic oil and also plays a role in heat dissipation and sedimentation of impurities. The filter is responsible for filtering impurities in the hydraulic oil, ensuring the cleanliness of the oil and extending the service life of each component of the hydraulic system. Various control valves, such as relief valves, pressure reducing valves, and directional control valves, are used to regulate the pressure, flow, and oil flow direction of the hydraulic system, enabling precise control of the crimping process.

Crimping Dies

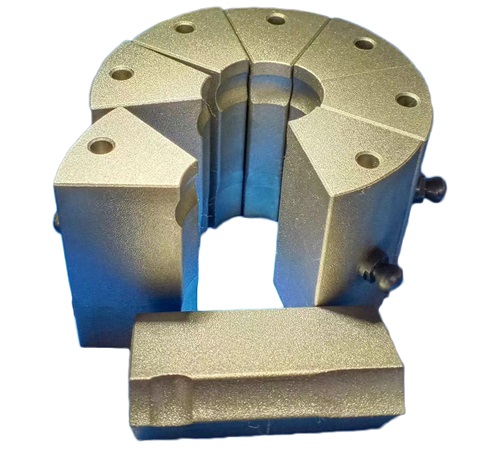

The crimping dies are the components that directly act on the hydraulic hose and connector. The design and manufacturing accuracy of the dies play a decisive role in the crimping quality. Dies usually consist of an upper die and a lower die. Depending on different hose specifications and connector types, the shape and size of the dies also vary. For example, for high-pressure hoses, the dies need to have sufficient strength and wear resistance to ensure a tight fit between the connector and the hose under high-pressure crimping, creating a firm connection. The surface treatment process of the dies is also very important. A smooth surface can reduce frictional resistance during the crimping process and avoid damage to the hose and connector.

Control System

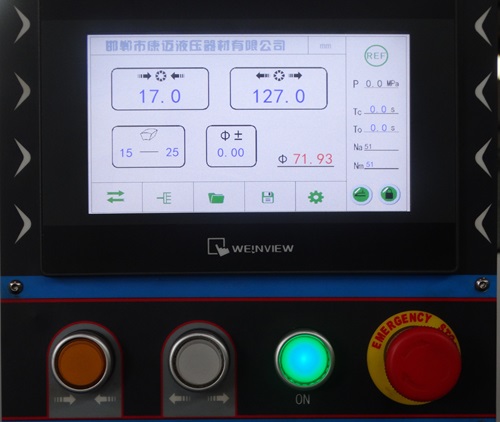

Modern hydraulic hose crimping machines are equipped with advanced control systems to achieve automated operation and precise control of the equipment. The control system usually includes an operation panel, controller, sensors, and other components. Operators input crimping parameters such as pressure, stroke, and time through the operation panel. The controller controls the operation of the hydraulic system according to these parameters. Sensors monitor data such as pressure and displacement in real-time during the crimping process and feed the information back to the controller, allowing the controller to adjust the control strategy in a timely manner to ensure the stability and consistency of the crimping process. Some high-end crimping machines also have a fault diagnosis function. When the equipment malfunctions, the control system can quickly detect the fault point and issue an alarm, facilitating troubleshooting and repair by maintenance personnel.

Auxiliary Components
In addition to the above main components, hydraulic hose crimping machines also include some auxiliary components, such as limit switches, pressure relays, safety valves, etc. Limit switches are used to limit the movement range of the piston rod, preventing it from exceeding the limit position and damaging the equipment. The pressure relay can send a signal when the system pressure reaches the set value, controlling the start and stop of the hydraulic pump or switching the working state. The safety valve is an important safety protection device of the hydraulic system. When the system pressure exceeds the allowable maximum value, the safety valve automatically opens to relieve pressure, avoiding safety accidents caused by excessive pressure.

In conclusion, a hydraulic hose crimping machine consists of multiple components, including the frame, hydraulic cylinder, hydraulic pump station, crimping dies, control system, and auxiliary components. These components work together to achieve efficient and precise crimping of hydraulic hoses. Understanding the structure and function of each component helps users better select, use, and maintain the crimping machine, ensuring the safe and reliable operation of the hydraulic system.
