Ensuring the safe use of crimped rubber hoses requires strict adherence to standardized procedures and comprehensive quality control throughout the crimping process. Here’s a detailed breakdown of key measures to guarantee safety:
1. Material and Component Selection
Hose & Fitting Compatibility: Choose hoses and fittings that match the intended application (e.g., working pressure, fluid medium, temperature range). For example, oil-resistant hoses must be used for hydraulic systems, while acid-resistant materials are essential for corrosive environments.
Certification and Standards: Verify that components comply with international standards (e.g., SAE, ISO) and carry relevant quality certifications to ensure material durability and structural integrity.
2. Pre-Crimping Preparation
Cleanliness: Thoroughly remove dirt, oil, or debris from the hose ends and fitting surfaces to prevent contamination, which could weaken the crimp joint or cause fluid blockages.

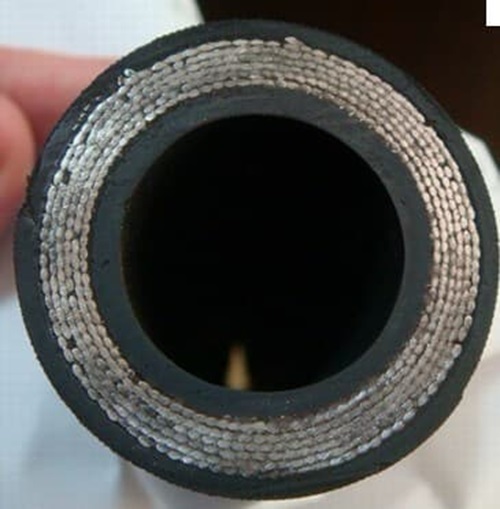

Accurate Cutting: Cut the hose end flat and perpendicular to its axis using specialized tools. Ragged or oblique cuts can lead to uneven crimping and potential leakage.
Inspection: Visually check hoses for defects (e.g., cracks, bulges) and fittings for burrs or deformations before assembly.
3. Crimping Process Control
Tool Calibration: Ensure crimping machines (e.g., hydraulic presses) are properly calibrated, with molds matching the hose and fitting specifications. Mismatched molds can cause over-crimping (damaging the hose) or under-crimping (loose connections).
Pressure & Stroke Settings: Follow the manufacturer’s guidelines for crimping pressure and stroke length. For instance, high-pressure hoses may require specific tonnage (e.g., 10-20 tons) to achieve a secure seal.
Positioning: Align the hose and fitting precisely in the mold to ensure uniform crimping along the joint. Misalignment can create weak points prone to failure under pressure.
4. Post-Crimping Quality Inspection

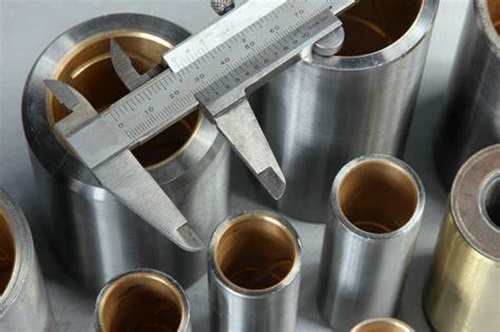

Dimension Check: Use calipers to measure the crimped area’s outer diameter against the manufacturer’s standards. Deviations beyond the allowable tolerance (e.g., ±0.5mm) indicate a faulty crimp.
Visual Inspection: Examine the crimped joint for signs of damage, such as splits, wrinkles, or uneven indentation. A proper crimp should show consistent mold marks and a smooth, tight seal.
Pressure Testing: Conduct a hydrostatic or pneumatic pressure test at 1.5–2 times the rated working pressure. Monitor for leaks, swelling, or joint failure during the test, which typically lasts 3–5 minutes.
5. Operational and Maintenance Guidelines
Installation Caution: Avoid excessive bending or twisting of the hose during installation, as this can stress the crimp joint. Maintain a minimum bending radius (usually 5–10 times the hose diameter) to prevent internal damage.
Environmental Protection: Shield hoses from prolonged exposure to sunlight, extreme temperatures, or abrasive surfaces, which can degrade materials and compromise the crimp’s integrity.
Regular Maintenance: Schedule periodic inspections (e.g., quarterly) to check for wear, leaks, or signs of aging. Replace hoses promptly if damage is detected to prevent catastrophic failures.
6. Training and Documentation
Operator Competency: Ensure crimping personnel are professionally trained and certified, as improper operation is a leading cause of safety failures.
Record-Keeping: Maintain detailed records of crimping parameters (e.g., date, tool settings, test results) for traceability and quality assurance.
By integrating these steps—from material selection to ongoing maintenance—users can significantly reduce the risk of leaks, ruptures, or system failures. Safe crimped hoses not only enhance operational efficiency but also protect personnel and equipment from hazardous incidents.
